MA SERIES

schematic diagram of MB Series Motor Driven Chemical Dosing Pump

MOTOR DRIVEN DOSING PUMP

The MA series metering pump is a volumetric, mechanically operated reciprocating metering pump. It is widely used in industrial and scientific industry such as petrochemical, chemical processing, food, pharmaceutical, paper, light industry, agriculture, water plant environmental protection, etc., and it is responsible for the measurement and addition of various media in the process. Different pump head materials are available to handle different type of fluid. The standard configuration is PVC material, and materials such as 304, 316, PVDF are available too. MA series metering pumps can pump corrosive or non-corrosive liquid without solid particles at the temperature range of -15 ° C ~ 60 ° C and a viscosity range of 0.3 ~ 1000 cps. The rated flowrate of the pump ranges from 10 to 1800 l/h, and the corresponding maximum output pressure is 10 to 1 bar. The flowrate of the pump can be adjusted by adjusting the rotation of the handwheel, and the pump can be adjusted from 0% to 100% regardless of whether the pump is running or not. Steady-state accuracy is ±1% over the 30% to 100% flow range. It is a metering pump with simple structure, low energy consumption, accurate measurement and practicality. Different types of metering pumps can be equipped with explosion-proof motors or variable frequency motors as required.

FEATURES

  • Leak free design.

  • Smooth flowrate adjustment in both operating and non operating condition.

  • Specially designed for handling corrosive liquids.

  • Varieties of material options, for different applications.

  • Controllable flowrate at both working and non-working condition.

  • Compact modular design.
  • ±1% accuracy dosing rate within 10-100% of the nominal flowrate.

  • Check valve with double balls designed for easy maintenance.

  • Easy parts replacement.

  • Multiple layers diaphragm, ensure longer lifespan.

PUMP GENERAL SPECIFICATIONS

Model MA Series
Type Motor Driven Mechanical Diaphragm
Flowrate (LPH) 12 ~ 500
Pressure (Bar) 8 ~ 5
Pump Head Material Standard: PVC
Optional:PVDF, SS304, SS316
Operating Method Continuous or Intermediate
Number of pump head 1
Connection Type Tube Compression Fitting / Glue Union / Weld Union
Flow Adjustment Method Adjustable Hand-wheel
Flow Adjustment Display Method Analog Display
Control remotely With additional ON/OFF actuator.
Suction Lift (m) 3
Number of Valve Ball Single
Stroke per minute 48~144
Accuracy ±1% within 30% ~ 100% flowrate
Weight (kg) Gross Weight: 12 KG
Net Weight: 15KG

DRIVER PARAMETERS

Standard Motor IEC STANDARD MOTOR

Power: 0.3 kW

Voltage: 220V/380V, 4P 3ph 50Hz

Protection:IP55 / Class F / TEFC

Optional*  Motors

(upon request)

IEC MOTOR VFD / EXD / VFD + EXD

Power: 0.37 kW

Voltage: 220V/380V, 4P 3ph 50Hz

Protection: IP55 / Class F / TEFC

DIAPHRAGM DETAILS

Diameter (mm) 65 ~112
Material 1st Layer: PTFE
2nd Layer: EPDM Rubber
3rd Layer: 3.0mm SUS304
4th Layer: Nylon Fibber
5th Layer: EPDM Rubber

ENVIRONMENT PARAMETERS

Fluid Temperature Range -15 ~ 60 (°C)
Fluid Viscosity Range 0.3 ~ 1000 cps
EnvironmentTemperature Range -30 ~ 80 (°C)
Outdoor Usage Yes, under shelter protection from direct sun and rain

PRODUCT IMAGE

MA Series Motor Driven Chemical Dosing Pump with PVC Pump Head

PVC Pump Head

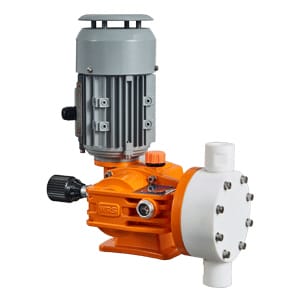

MA Series Motor Driven Chemical Dosing Pump with PVDF Pump Head

PVDF Pump Head

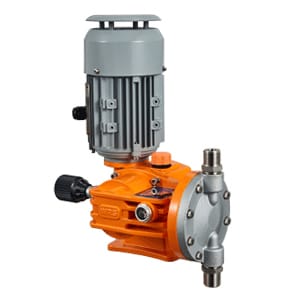

MA Series Motor Driven Chemical Dosing Pump with Stainless Steel Pump Head

SS304/316 Pump Head

MODEL SELECTION

Model Stroke per Minute (min-1) Rated Flow (LPH) Rated Pressure (Bar) Rated Power (kW) Connection Type
(PVC) (PVDF) (SS316)
MA0015 48 12 10 0.25 Φ6×9 PE Tube Compression Fitting RC 1/2 Inner Thread NPT Φ8×14 Weld Union
MA0025 48 20 10
MA0040 48 40 10 DN15 Glue Union Φ10×16 Weld Union
MA0060 48 60 8
MA0080 96 80 8
MA0120 96 120 8
MA0180 96 180 8 Φ15×22 Weld Union
MA0250 96 250 7
MA0320 144 320 7
MA0400 144 400 5 0.37 RC 3/4 Inner Thread NPT
MA0500 144 500 5

MATERIAL SELECTION

Pump Head Material Valve Body Valve Seat Valve Ball Diaphragm O-Rings Inlet/Outlet
PVC PVC PVC Ceramic PTFE Viton PVC
PVDF PVDF PVDF Ceramic PTFE Viton PVDF
SS304 SS304 SS304 SS304 PTFE PTFE SS304
SS316 SS316 SS316 SS316 PTFE PTFE SS316

*For chemical compatibility table, please visit here.

DIMENSION

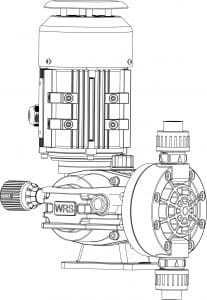

Product Dimensions for MA Series Motor Driven Dosing Pump with Interchangeable Motor
Model Pump Head Material Connection A B C D E
MA0010 – MA0030 PVC Φ6×9 PE Tube Compression Fitting 176 90 84 303 362
PVDF RC 1/2 Female NPT 220 90 84 307 384
304/316 Φ8×14 Weld Union 230 90 86 310 390
MA0040 – MA0120 PVC DN15 Glue Union 238 124 92 320 393
PVDF RC 1/2 Female NPT 203 124 86 310 402
304/316 Φ10×16 Weld Union 270 124 86 310 410
MA0180 – MA0320 PVC DN15 Glue Union 256 140 92 320 402
PVDF RC 1/2 Female NPT 223 140 96 327 390
304/316 Φ15×22 Weld Union 300 140 93 320 425
MA0400 – MA0500 PVC DN15 Glue Union 256 140 92 320 402
PVDF RC 1/2 Female NPT 223 140 96 327 390
304/316 Φ15×22 Weld Union 300 140 93 320 425
