DIAPHRAGM PRESSURE GAUGE

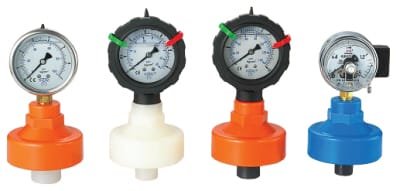

diaphragm pressure gaugeInstrument Outer Diameter: φ60MM / φ100MM
Accuracy Level: 6%
Measuring Range: 0-1.6MPa
Working Temperature: -20~70℃
Connector Material: Copper Alloy
Diaphragm Material: PP/PVC/PTFE/EPDM
Thread Size: 1/4″ , 3/8″ , 1/2″, 3/4″, 1″
Ingress Protection: IP54
Meter Fluid: Silicone Oil
Working pressure: static load: 3/4 of the upper limit of measurement
Alternating load: 2/3 of the upper limit of measurement

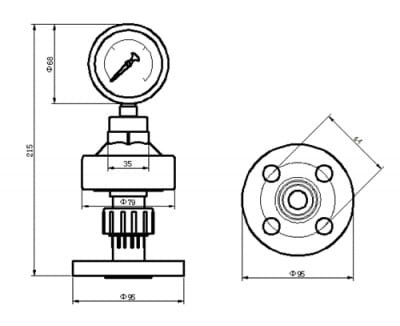

pressure gauge schematic diagramschematic diagram of diaphragm pressure gauge

Model Body Material Diaphragm Material D (mm) H (mm) Connection
786-U UPVC FPM, PTFE 79 161 G1/2”, G1/4” F thread or DN15, DN20 Socket
786-P PP FPM, PTFE 79 161 G1/2”, G1/4” F thread
786-V PVDF PTFE 79 161 G1/2”, G1/4” F thread
