CALIBRATION COLUMN

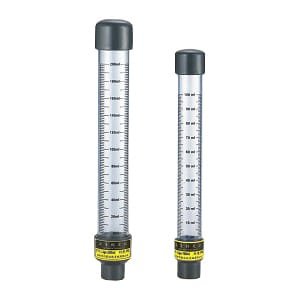

Calibration Column Chemical Dosing Equipment

Sizing: Sizing a calibration column is based on

Example: If your pump flowrate is at 60LPH, and user required

MODEL SELECTION

Model Volumn (ml) Diameter (mm) Height (mm) Standard Connection
LGBD-100 100 32 280 Female Thread 1/2″
LGBD-200 200 40 320 Female Thread 1/2″
LGBD-300 300 50 320 Female Thread 1/2″
LGBD-400 400 50 400 Female Thread 1/2″
LGBD-500 500 63 350 Female Thread 1/2″
LGBD-1000 1000 63 455 Female Thread 1/2″
LGBD-2000 2000 75 805 Female Thread 3/4″
LGBD-3000 3000 110 640 Female Thread 1″
LGBD-4000 4000 110 640 Female Thread 1″
LGBD-6000 6000 110 1000 Female Thread 1 1/2″
LGBD-8000 8000 140 935 Female Thread 1 1/2″
LGBD-10000 10000 140 1110 Female Thread 2″
