AIR RELIEF VALVE

MODEL 386

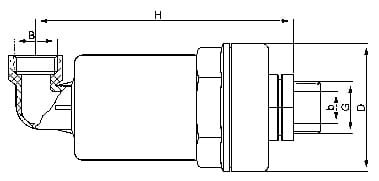

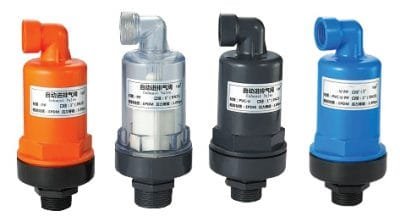

air relief valvesschematic diagram of air relief valve Chemical Dosing Equipment

Model Size H B G d D
38615 DN15 145 G 3/4″ G 1/2″ 11.5 80
38625 DN25 145 G 3/4″ G 1″ 20 80
38632 DN32 145 G 3/4″ G 1 1/4″ 20 80
38640 DN40 160 40 G 1 1/2″ 40 100
38650 DN50 160 40 G 2″ 45 100

MODEL 387

air relief valve MODEL 387schematic diagram of an air relief valve MODEL 387 by WRS

Model Size H B G d D
38715 DN15 76 20 G 1/2″ 16.2 63
38720 DN20 76 25 G 3/4″ 18 63
